At the heart of this challenge lies the choice of tunnel oven technology. Among the various options, the direct fired tunnel oven has long been favored for its energy efficiency and rapid heat transfer. However, some producers worry that direct flame contact might compromise color uniformity.
In this article, we IMAR Equipment a professional manufacturer of industrial baking lines—will explain the working principles of direct fired ovens, analyze their impact on biscuit color consistency in comparison with indirect fired systems, and demonstrate how modern engineering has turned direct fired technology into a precision tool for achieving flawless, uniform browning.
Working Principle of a Direct Fired Tunnel Oven
In a direct fired tunnel oven, gas (typically natural gas or LPG) is combusted directly inside the baking chamber. Burners are positioned above and/or below the conveyor belt, and the hot flue gases—composed primarily of CO₂, water vapor, nitrogen, and excess oxygen—are released directly into the oven cavity. These gases circulate and transfer heat to the biscuits via:
- Radiation from the flame and the hot refractory surfaces.
- Convection from the moving hot gases.
- Conduction from the heated belt.

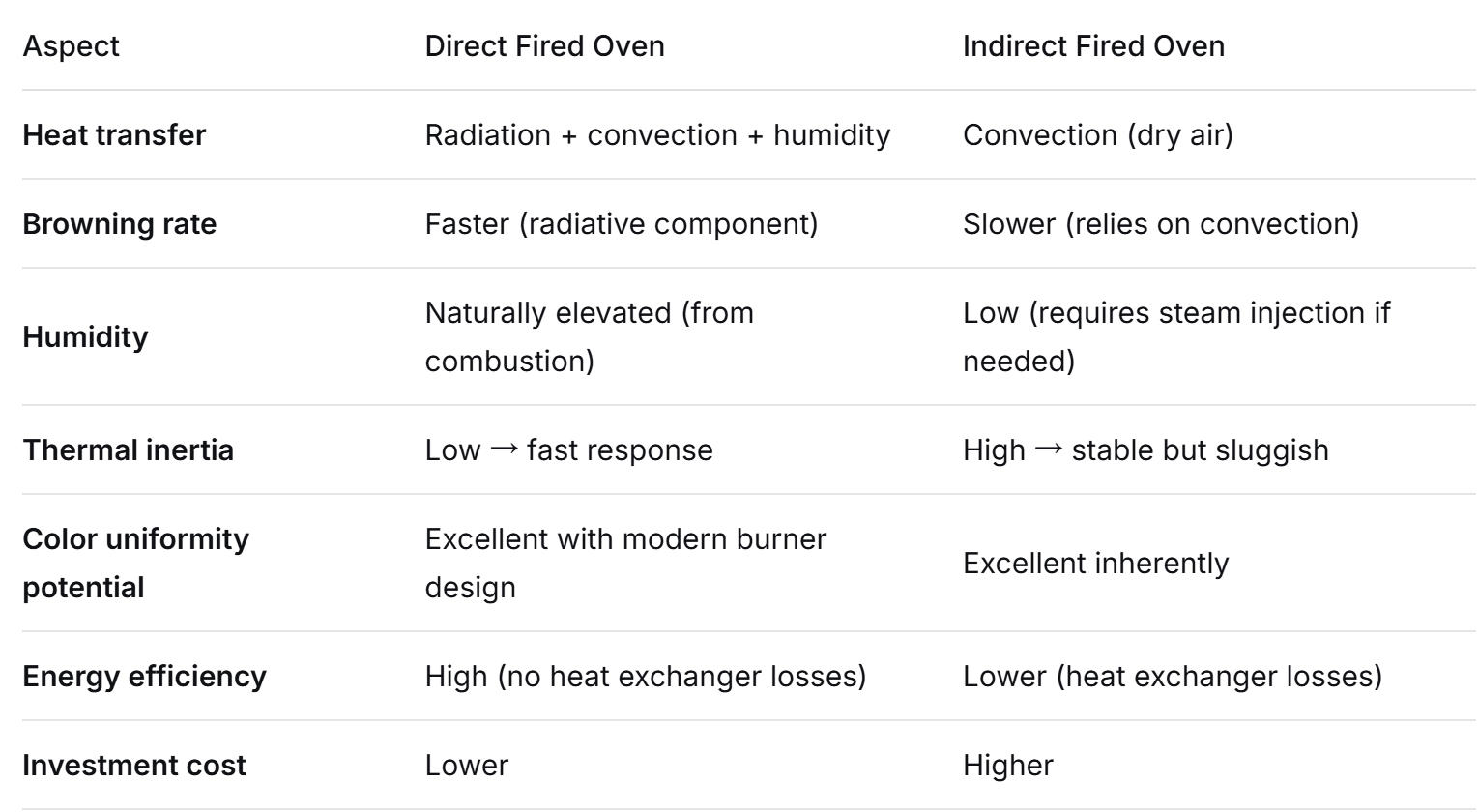

Indirect Fired Tunnel Oven: A Brief Contrast
For comparison, an indirect fired tunnel oven keeps the combustion process separate. A burner heats a heat exchanger (typically a bank of tubes or a plate), and only clean, heated air is blown into the baking chamber. The combustion gases are vented outside, never contacting the product. Heat transfer is predominantly through forced convection of clean air and radiation from the oven walls.
While indirect ovens offer a pristine atmosphere, they lack the radiative flame component and the natural humidity of direct fired systems.
How Direct Fired Technology Affects Biscuit Color Consistency
3.1 Heat Transfer and Browning Dynamics
Biscuit browning is the result of two primary chemical reactions:
Maillard reactions (between amino acids and reducing sugars), which produce golden-brown colors and characteristic baked flavors.
Caramelization of sugars, which contributes darker hues at higher temperatures.
Direct fired ovens provide intense radiant heat from the flame zone, which accelerates surface temperature rise and promotes rapid Maillard browning. This can be particularly advantageous for products like crackers and hard biscuits where a robust color and quick bake are desired.
However, traditional direct fired designs sometimes suffered from “hot spots”—areas near burner nozzles where radiation intensity was higher, leading to localized over-browning. This is where modern engineering makes all the difference.
3.2 The Humidity Factor
One of the most underappreciated advantages of direct fired ovens is the natural humidity generated by combustion. Water vapor in the early baking stages:
Delays crust setting, allowing the biscuit to expand fully before the surface hardens.
Enhances heat transfer to the product core.
Promotes more uniform Maillard reactions across the entire surface.
In contrast, indirect ovens operate with dry air, which can cause premature skin formation, trapping steam and sometimes resulting in surface checking or uneven color development—especially on products with high sugar content.
3.3 Thermal Uniformity Through Advanced Zoning
Modern direct fired tunnel ovens are no longer simple flame boxes. They feature multiple independently controlled zones along the length of the oven, each with its own set of burners and airflow management. This allows precise tailoring of the temperature profile to match the product’s baking curve.
Moreover, computational fluid dynamics (CFD) is now used to design burner layouts that ensure transverse uniformity (side-to-side). By optimizing burner spacing, flame geometry, and recirculation patterns, today’s direct fired ovens can achieve temperature deviations of less than ±3°C across the belt width—well within the tolerance for consistent color.
3.4 Rapid Response and Process Stability
Direct fired systems have low thermal inertia: when the controller calls for a temperature change, the flame responds almost instantly. This agility is crucial for maintaining color consistency during production startups, product changes, or when variations in dough properties occur. Combined with closed-loop control using infrared sensors that monitor biscuit color in real time, direct fired ovens can automatically adjust zone temperatures to maintain target color values.
Why Choose a Direct Fired Oven for Color-Consistent Biscuits?
For most biscuit types—especially crackers, semi-sweet, and hard-dough biscuits—a well-designed direct fired oven offers the perfect balance of color development speed, uniformity, and operating economy.
At topbakings.com, we have refined direct fired technology through decades of experience and continuous innovation. Our direct fired tunnel ovens incorporate:
Multi-zone ribbon burners that spread the flame evenly across the belt width, eliminating hot spots.
CFD-optimized airflow ducts that ensure uniform convection distribution.
PLC-based temperature control with PID algorithms and real-time feedback from pyrometers.
Modulating gas trains that maintain precise air-fuel ratios for stable combustion and consistent humidity levels.
Optional top and bottom heat separation to independently control top browning and bottom baking.
We also offer hybrid configurations where early zones use direct firing for rapid expansion and later zones use indirect heating for gentle finish baking—giving you the best of both worlds.
Conclusion: Direct Fired Ovens Deliver Consistent Color When Properly Designed
The notion that direct fired ovens inherently produce inconsistent color is outdated. With modern burner technology, intelligent zoning, and precise process control, direct fired tunnel ovens can achieve color uniformity that rivals—or even exceeds—that of indirect fired systems, while offering superior energy efficiency and lower capital cost.
The key lies in partnering with a manufacturer who understands the science of heat transfer and can tailor the oven to your specific recipe and production requirements.
Ready to elevate your biscuit quality? Contact the experts at topbakings.com for a consultation. Let us show you how our direct fired tunnel ovens can deliver the consistent, beautiful color your market demands.
